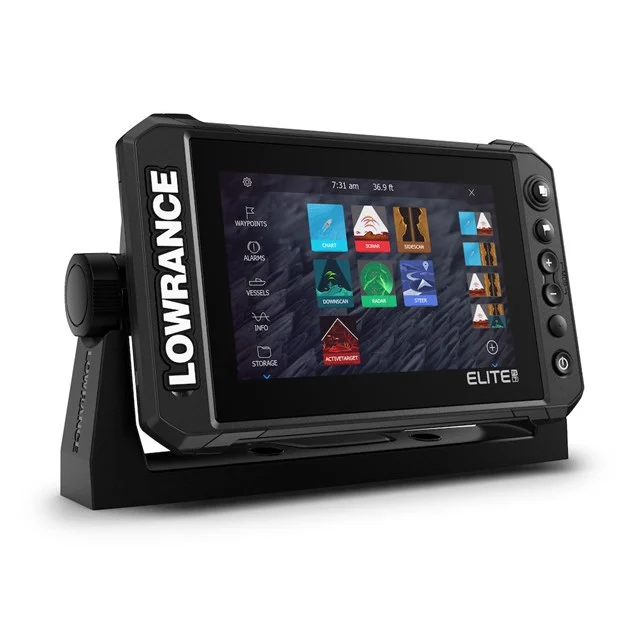

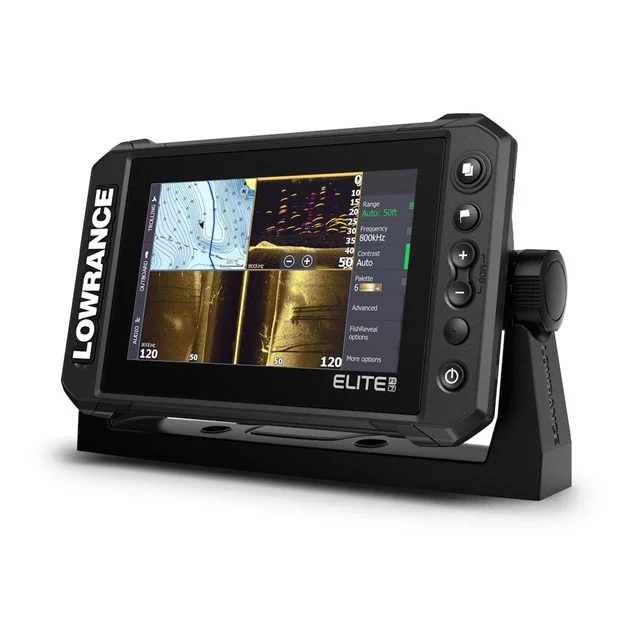

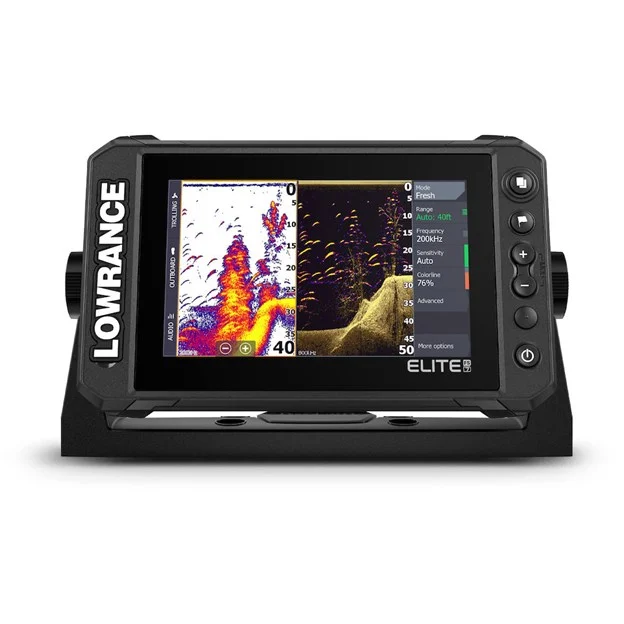

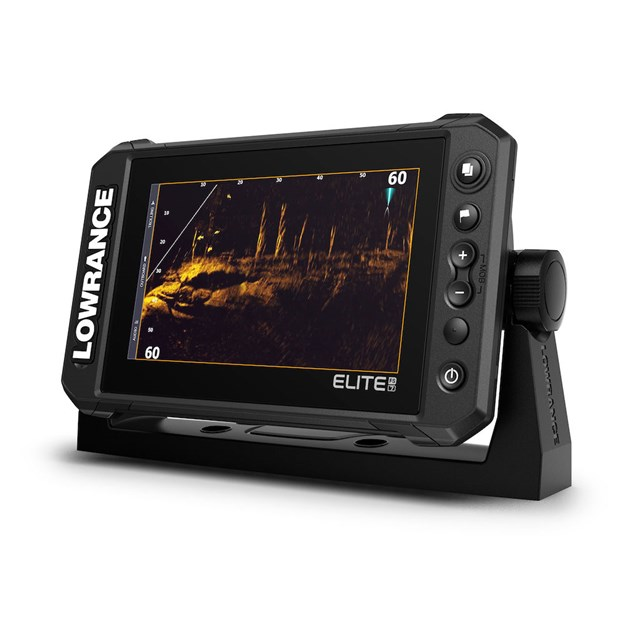

LOWRANCE Elite FS 7 with Active Imaging 3-in-1
LOWRANCE Elite FS 7 with Active Imaging 3-in-1
For collection from Tartu, wait for confirmation that your order is ready.
Stock by location
Flexible payment options Pay in 3 equal parts Pay next month
€0 extra cost
Choose Inbank at checkout. Available options depend on your cart total and Inbank’s approval.
Learn more about payment optionsHow does it work?
-
1
Add products to cart
-
2
Choose Inbank at checkout
-
3
Get a decision in moments
-
4
We send you an e-invoice
Product details
The Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools – including ActiveTarget® 2 Live Sonar, Active Imaging™ HD and compatibility with a wide range of chart options – to help you make the most of your time on the water.
*Active Imaging HD requires S3100 Module
Display
- Backlight: pure white LED
- Resolution: 800 × 480
- Brightness: >1200 nits
- Viewing angles: 50° up / 60° down / 70° left/right
Connectivity
- Bluetooth 4.0 (Classic support)
- Ethernet: 1 × 100 Mbit
- Wi-Fi: internal 802.11b/g/n
- NMEA 2000 PGN support (receive/transmit list)
- SD card slot: 1 × microSD (up to 32 GB)
Cartography
- C-MAP (MAX N, MAX N+)
- C-MAP Genesis
- Navionics Gold / NAV+ / Platinum+
- Insight Pro & HD
- Regional mapping partners
Electrical
- Max/typical/min consumption: 2.0 A @ 13 V DC
- Recommended fuse: 3A
- Supply voltage: 12 V DC (10.8–17 V DC)
Environment
- Humidity: 60°C, 95% RH for 18 hours
- Operating temp: -15°C to +55°C
- Storage temp: -20°C to +60°C
- Shock/vibration: 100,000 cycles at 20 G
- Waterproof: IPX7
GPS
- Accuracy: 20 m RMS
- Systems: DGPS / WAAS / MSAS / EGNOS / GLONASS / GPS
- Channels: 16
- Time to first fix: 30 s
- Update rate: 10 Hz
MFD
- AIS overlay
- Autopilot support
- Audio integration (SonicHub, FusionLink, NMEA2000 audio)
- CHIRP, DownScan, SideScan
- Live sonar compatibility (ActiveTarget, LiveSight)
- Waypoints/routes/trails: 3000 / 100 / 100 (up to 10,000 points per trail)
Physical
- Compass safe distance: 12" (300 mm)
- Mounting: gimbal or flush dash mount
- Weight: 0.90 kg
